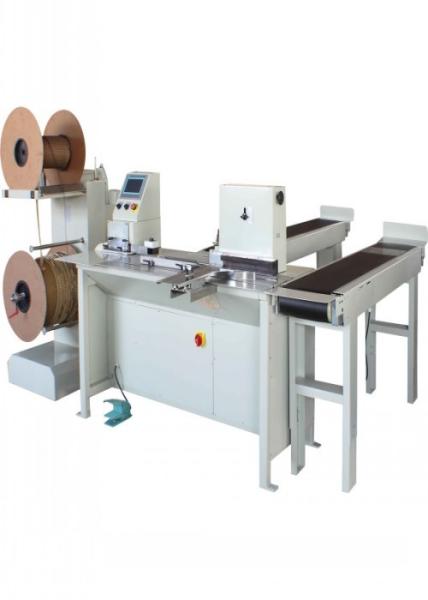

WNB-420 Automatic Double Loop Coil Book Binding Machine without Change mould

. Double Loop Coil Binding Machine is used for binding double loop wire books,notebooks,wall calendars etc.it can bind 1/4" 5/16" 3/8"

7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" without changing Size binding moulds.with the integration of automatically unwinding the spool. loops

Cutting,conveying and closing.it increased the production efficiency and lowered the cost remarkably

Double Loop Coil Binding Machine 's advantages:

1: can bind notebook speed up to 1000 books per hour

2: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" pitch 3:1 &2:1 with one machine no need change mould

3:can bind book width 70-360mm

4: machine has auto error reminder function

5:Multi language interface design according to customer requested

6:Automatic transmission books,and allow workers to easy operate

7:the actuating element of the machine to switch to new side type to ensure long life and stability

Automatic Twin Ring Binding Machine Specifications:

Feeding mode: Manual Wire Specifications:Automatic cutting,insertion&Closing

Max Binding width:360mm

Min.Paper Width:75mm Working speed(times/hour)1000

Power:220v/1ph/50hz/60hz/0.2kw

Air Compressor(not included)kw:1.5 Air pressure(bar):6-8

Net weight:400kg machine dimension:1800*760*1230mm

Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.

Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve
